【dify工具源码】手把手教你将midjourney v6接入到dify中


 先说好,midjourney本身是没有公开的api接口的,所以今天说的是一个叫mazeguru平台接入了midjourney,然后从mazeguru平台平台的api做成dify的自定义工具,实现将midjourney v6接入到dify中调用。

https://maze.guru/

我们都知道,在github有midjourney的套壳项目,其本质还是用你的midjourney账户的token来抓数据的,这种行为对你的midjourney账户是不安全的,并且很不稳定,搞不好你的账户就嘎了。mazeguru这个平台就好用一些,因为它集成度已经很高了。


本次分享主要分两个方面:

  1. dify自定义工具源码分享

  2. 使用细节

01

dify自定义工具源码分享

{"openapi": "3.1.0","info": {"title": "Mazeguru","description": "提供文生图和图生图功能,以及查询生成结果的API。","version": "1.0.0"},"tags": [{"name": "Image Generation","description": "文生图相关操作"},{"name": "Image-to-Image Generation","description": "图生图相关操作"},{"name": "Result Query","description": "查询生成结果"}],"paths": {"/api/v1/txt2img": {"post": {"summary": "生成图像","operationId": "文生图","tags": ["Image Generation"],"parameters": [{"name": "Authorization","in": "header","required": true,"description": "这里填写的是mazeguru平台的App Key。","schema": {"type": "string"}}],"requestBody": {"content": {"application/json": {"schema": {"type": "object","properties": {"num": {"type": "integer","description": "生成图像数量,默认为1","default": 1},"mj_stylize": {"type": "integer","description": "仅选择MJ型号生效,如果你确定使用midjourney,这里必须填写:100.如果填写的不是100,表示不调用midjourney模型。","default": 100},"seed": {"type": "string","description": "随机种子,这里建议填写不超过8位数的正整数。这个就不谈了,大家都懂。"},"art_genre": {"type": "string","description": "艺术风格,当你使用midjourney任何模型的时候,这里不填即可。当你使用非midjourney模型时,这里可以填,具体能填什么,看我公众号文章分享【公众号:提示日记】","example": "animal"},"width": {"type": "integer","description": "图像宽度,与高度参数搭配使用的。宽高取值只能是如下几个:1024x1024 、 768x1536 、 928x1232 、 1232x928 、 1456x816 、 816x1456","default": 1024},"height": {"type": "integer","description": "图像高度,与宽度参数搭配使用的。宽高取值只能是如下几个:1024x1024 、 768x1536 、 928x1232 、 1232x928 、 1456x816 、 816x1456","default": 1024},"style_id": {"type": "integer","description": "样式ID。请注意,这里不能乱填,如果你使用midjourney的模型,这里只有4个参数可以填写,任填一个:153 、 154 、20003 、 20006。【153对应MJv5】【154对应Niji】【20003对应MJv6】【20006对应Nijiv6】","default": 20003},"prompt": {"type": "string","description": "图像生成提示词。最大不能超过1000个单词。"}},"required": ["prompt"]}}}},"responses": {"200": {"description": "成功生成任务ID","content": {"application/json": {"schema": {"type": "object","properties": {"code": { "type": "string" },"data": {"type": "object","properties": {"jobs": {"type": "array","items": { "type": "string" }}}},"msg": { "type": "string" }}}}}}}}},"/api/v1/img2img": {"post": {"summary": "图生图生成图像","operationId": "图生图","tags": ["Image-to-Image Generation"],"parameters": [{"name": "Authorization","in": "header","required": true,"description": "这里填写的是mazeguru平台的App Key。","schema": {"type": "string"}}],"requestBody": {"content": {"application/json": {"schema": {"type": "object","properties": {"num": {"type": "integer","description": "生成图像数量","default": 1},"mj_stylize": {"type": "integer","description": "仅选择MJ型号生效,如果你确定使用midjourney,这里必须填写:100.如果填写的不是100,表示不调用midjourney模型。","default": 100},"style_id": {"type": "integer","description": "样式ID。请注意,这里不能乱填,如果你使用midjourney的模型,这里只有4个参数可以填写,任填一个:153 、 154 、20003 、 20006。【153对应MJv5】【154对应Niji】【20003对应MJv6】【20006对应Nijiv6】","default": 20003},"prompt": {"type": "string","description": "图像生成提示词。最大不能超过1000个单词。"},"width": {"type": "integer","description": "图像宽度,与高度参数搭配使用的。宽高取值只能是如下几个:1024x1024 、 768x1536 、 928x1232 、 1232x928 、 1456x816 、 816x1456","default": 1024},"height": {"type": "integer","description": "图像高度,与宽度参数搭配使用的。宽高取值只能是如下几个:1024x1024 、 768x1536 、 928x1232 、 1232x928 、 1456x816 、 816x1456","default": 1024},"art_genre": {"type": "string","description": "艺术风格,当你使用midjourney任何模型的时候,这里不填即可。当你使用非midjourney模型时,这里可以填,具体能填什么,看我公众号文章分享【公众号:提示日记】","example": "写真"},"seed": {"type": "string","description": "随机种子,这里建议填写不超过8位数的正整数。这个就不谈了,大家都懂。"},"init_image_url": {"type": "string","description": "种子图像URL,请注意填写完整的URL,并且确保mazeguru能访问并下载你的种子图像。"},"init_image_similarity": {"type": "integer","description": "与种子图像的相似度,值0-100的整数,数值越大相似度越高","default": 75}},"required": ["prompt", "init_image_url"]}}}},"responses": {"200": {"description": "成功生成任务ID","content": {"application/json": {"schema": {"type": "object","properties": {"code": { "type": "string" },"data": {"type": "object","properties": {"jobs": {"type": "array","items": { "type": "string" }}}},"msg": { "type": "string" }}}}}}}}},"/api/v1/generate-result": {"post": {"summary": "查询生成结果","operationId": "查询结果","tags": ["Result Query"],"parameters": [{"name": "Authorization","in": "header","required": true,"description": "这里填写的是mazeguru平台的App Key。","schema": {"type": "string"}}],"requestBody": {"content": {"application/json": {"schema": {"type": "object","properties": {"jobs": {"type": "array","items": { "type": "string" },"description": "任务ID列表"}},"required": ["jobs"]}}}},"responses": {"200": {"description": "成功查询结果","content": {"application/json": {"schema": { "type": "object","properties": {"code": { "type": "string" },"data": {"type": "array","items": {"type": "object","properties": {"job": { "type": "string" },"status": { "type": "integer" },"picture_url": { "type": "string" },"complete_percent": { "type": "string" },"audio_info": { "type": "string" }}}}}}}}}}}}},"components": {},"servers": [{"url": "https://open.maze.guru"}]}

【dify工具源码】手把手教你将midjourney v6接入到dify中

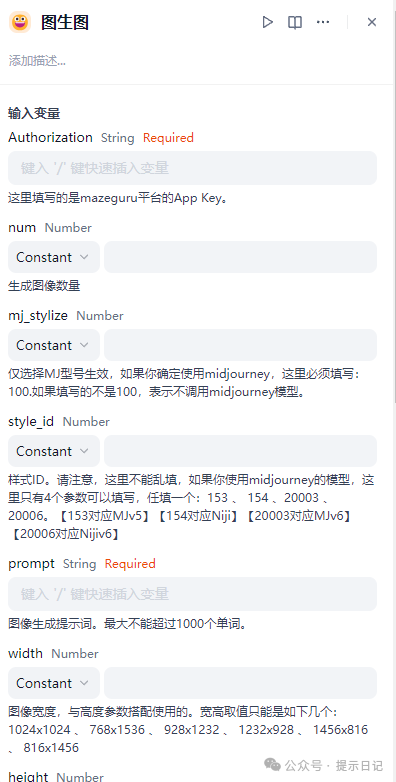

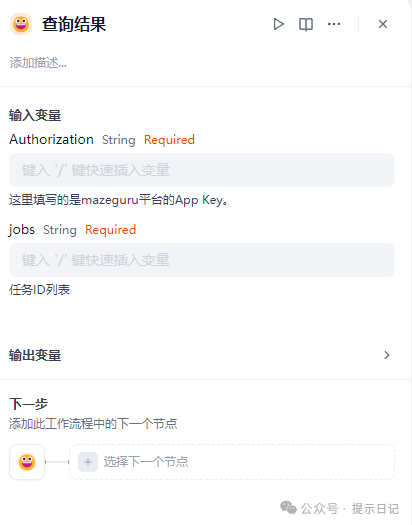

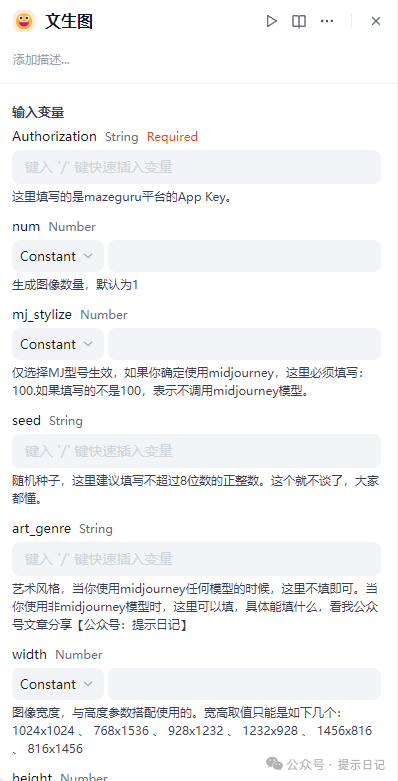

添加好了之后,就如上图所示。从mazeguru接入了3个工具,分别是文生图、图生图、查询结果。这三个工具都能在dify的工作流中使用。


【dify工具源码】手把手教你将midjourney v6接入到dify中

【dify工具源码】手把手教你将midjourney v6接入到dify中



【dify工具源码】手把手教你将midjourney v6接入到dify中

请注意,无论是文生图还是图生图工具,后面都需要先提取任务ID,也就是返回数据中的jobid。然后将jobid传给查询结果的工具获取生成的图片URL。


为了方便大家理解不同工具的返回结果,下面我将各个工具的返回数据示例写出来,大家自行参考。

文生图:

{"code": "200","data": {"jobs": ["C5B5FE8DBF3679D9049342C130341BD9"]},"msg": ""}

图生图:

{"code": "200","data": {"jobs": ["C5B5FE8DBF3679D9049342C130341BD9"]},"msg": ""}

由此可见,文生图和图生图的返回结构是一样的,你需要提取jobs列表中的参数即可。请注意,如果你生成的是多张图,jobs列表中会出现多个参数哦。如果你是新手,我个人建议你生成图片的数量设置为1,这样方便你提取参数。如果你是编程老手,我个人强烈推荐大家使用dify v0.7.1以上的版本,搭配会话变量这个功能临时存储,然后分别查询结果,这样可以锻炼你使用会话变量这个功能的习惯。说实话,我认为这个功能真的很不错。

查询结果:

{"code": "200","data": [{"job": "1746803472390426624","status": 4,"picture_url": "https://cdn.maze.guru/ai/13tpaqf/8E76E92A9BF2B64ECE3F12690DA6FE43-01.jpg","complete_percent": "1","audio_info": "[{"rate":99.9,"suggestion":"pass","label":"normal","scene":"porn"},{"rate":99.91,"suggestion":"pass","label":"normal","scene":"terrorism"}]"}]}

其中picture_url就是生成的图片地址。

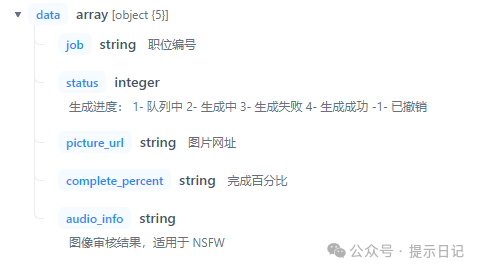

当然,这个返回结果存在几个你没见过的参数,分别给大家解释一下,如下图所示:

【dify工具源码】手把手教你将midjourney v6接入到dify中

一般来说,异步任务有这样的返回结果,显得还是很专业的,mazeguru跟fal平台生成图片是不一样的哈,大家要注意,fal平台是线性任务,获取图片的过程中是需要“在线等待”的,而mazeguru是异步生成,图片的结果是需要单独请求(也就是使用查询结果这个工具)才能获得。

02

使用细节

关于工具的使用细节,我上面基本上讲清楚了,但是如果你需要获得mazeguru平台更多的样式信息,那么你就需要看看这个,下面我提供一个样式对照表,方便你灵活使用。


Stable Style(适用于基础样式)

style id style name
29 Girl Realistic
31 Real Photo
43 Fantasy
52 Universal
71 Scifi
90 C4D
100 Asian Portrait
111 Any Portait
156 2.5D XL
192 Interior Design XL
193 Universal XL
20004 Dalle3

Anime Style(适用于基础样式)

style id style name
3 Default V1
46 Semi Impasto
84 TV002
97 Everything
112 Lineless Art
113 2.2D Impasto
155 Anime XL

MJ&NIJI(mj模型专用,开会员才能用)

style id style name
153 MJv5
154 Niji
20003 MJv6
20006 Nijiv6

Exclusive(平台特殊样式,开会员才能用)

style id style name
115 Emoji Mixed
116 SD Figure
117 Geometri c
118 1990s
119 Chubby
120 Flat Graphics
121 Fairy
122 Bokeh
123 Childbook
124 Papercut
125 Sharpie
126 Tshirt Printing
127 Vector Graphics
128 Hand Draw
129 Minimal Logo
130 Watercolor
131 Felt Craft
132 Hologram
133 Vector Design
134 Kawayi
140 Glass Crack
141 Genevieve Book
142 Cute Animals
143 Cobblestone
144 Oriental Ink
145 Mexican Sticker
146 Zen Illustration
147 Japan Minimalist
148 2D Chibi
149 Star Warframe
150 Low Poly
151 Splatoon
152 Fresh Punk
157 Ukiyoe
158 Yoshitaka Amano
160 Goro Fujita
161 Kintsugi
162 Wabi-sabi
163 Ikebana
164 Trendy Toys
165 Temari
166 Surrealism
167 Line Art
168 Floral Art
169 Gothic Fairy Tale
170 Superhero Poster
171 Superhero Comic
173 Superhero Comic III
174 Superhero Comic II
175 Romantic Goth
176 Pop Art
177 Kawanabe Kyosai
178 Japanese Vintage Poster
179 Hina Doll
180 Healing Cartoon
181 Hasui Kawase
182 Harajuku Fashion
183 Future Punk
184 Cement Design
185 Broken Design
186 Brazilian Modernism II
187 Brazilian Modernism
188 Balloon Art
189 B&W Goth

好了,以上就是这个工具的使用全部教程了,请留意,这个平台调用mj的成本比mj官方是高的,好处就是不会封你的mj账户,起码比你直接使用mj代理平台抓数据要安全一些。
